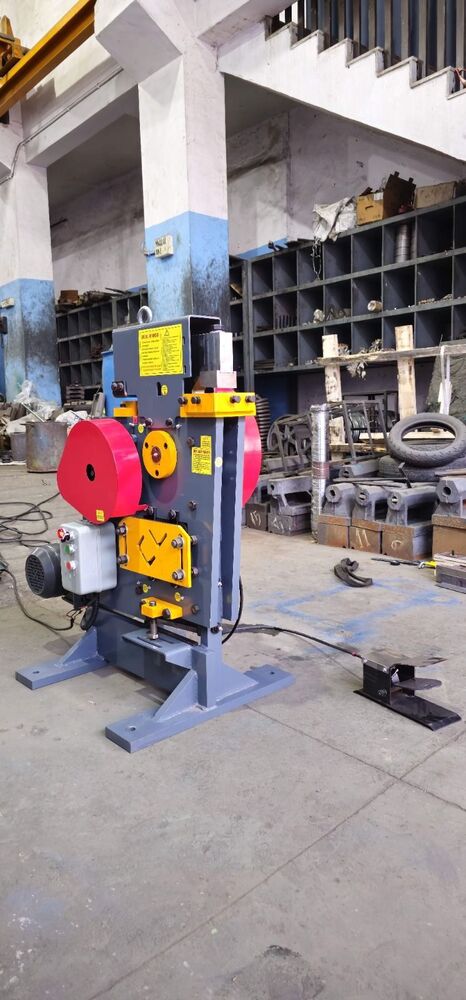

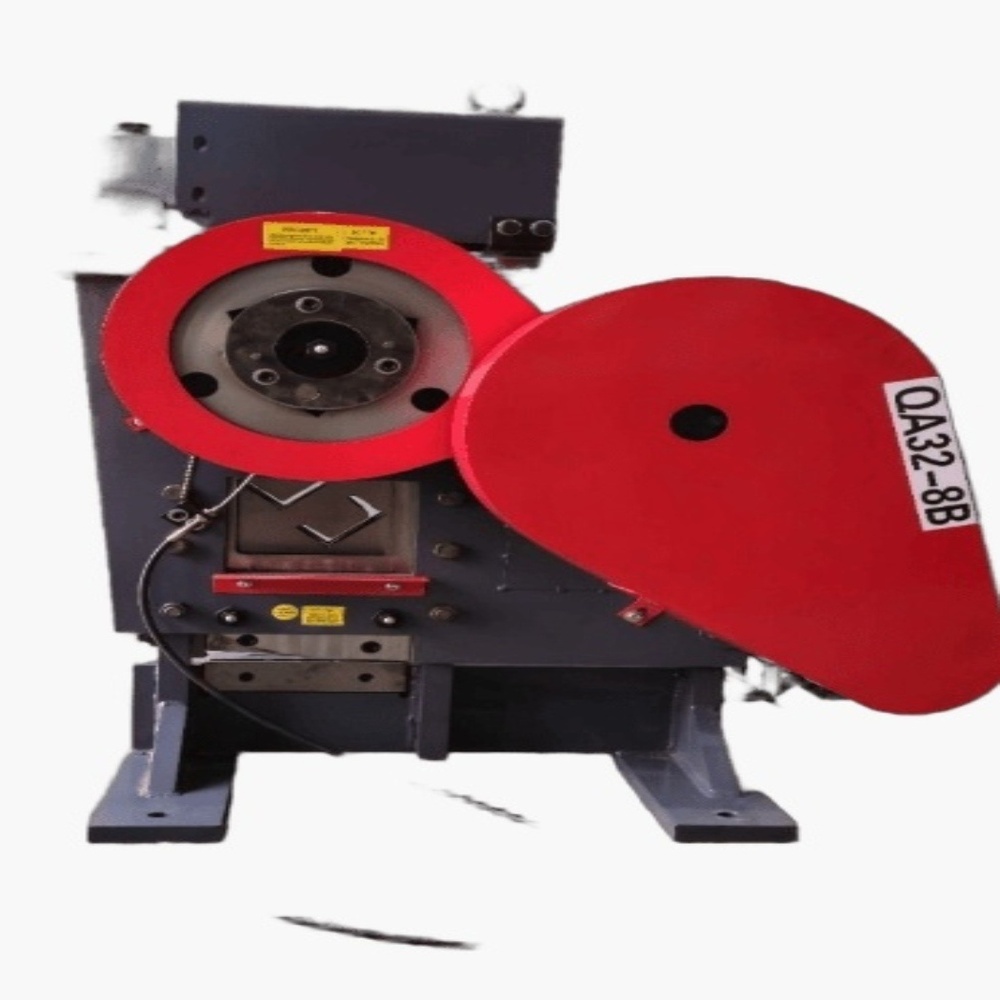

PUNCHING SHEARING MACHINE

Name: PUNCHING SHEARING MACHINE
Brand: A.K ENGINEERING
Price: 105000 INR
Availability: InStock

105000 INR/Unit

Get a Price/Quote

Product Details:

Drive Motor Three-phase electric
Product Type Punching Shearing Machine
General Use Industrial metal fabrication
Material Steel, Mild Steel, Alloy Steel
Type Ironworker
Capacity Up to 120 tons
Weight (kg) Approximately 2200 kg
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PUNCHING SHEARING MACHINE Price And Quantity

Price 105000 INR/Unit
Minimum Order Quantity 1 Unit

PUNCHING SHEARING MACHINE Product Specifications

Drive Type Hydraulic
Cutting Thickness up to 25 mm
Cooling System Air cooled
Drive Motor Three-phase electric
Capacity Up to 120 tons
Material Steel, Mild Steel, Alloy Steel
Cutting Material Steel, aluminum, copper
Computerized Yes
Mechanical Precision 0.2 mm
Cutting Area Standard (Customized on request)
General Use Industrial metal fabrication
Voltage 380-415V, 3 Phase, 50 Hz
Automatic Semi-automatic
Control System Digital PLC
Weight (kg) Approximately 2200 kg
Motor 7.5 kW heavy-duty induction motor
Software Detail Advanced integrated control, PLC compatible
Cutting Function Punching, shearing, angle cutting
Dimension (L*W*H) 2280 mm 900 mm 1850 mm
Feature Heavy duty construction, multi-functional
Cutting Method Hydraulic shearing and punching
Cutting Speed 12-18 strokes/minute
Color Blue-grey with yellow safety panels
Product Type Punching Shearing Machine
Type Ironworker

Power Consumption 8-10 kW
Noise Level Below 75 dB
Punching Force 80-120 tons adjustable
Operating Temperature Range 0C to 45C
Cycle Time 3-5 seconds per operation
Standard Accessories Set of standard punches and dies, instruction manual, tool kit
Hydraulic Oil Capacity 50 liters
Tool Change System Quick-release interchangeable dies
Lubrication System Centralized automated
Safety Features Emergency stop, finger guard, overload protection

PUNCHING SHEARING MACHINE Trade Information

Delivery Time 5-7 Days

Product Description

Punching & Shearing Machine

AK ENGINEERING

A Punching & Shearing Machine is a powerful and versatile metal fabrication machine designed to perform punching, shearing, notching, and cutting operations with precision and efficiency. It is widely used in workshops, manufacturing units, and construction industries for processing metal sheets, bars, angles, and plates. Built with a robust structure and high-performance components, the machine ensures accurate results, increased productivity, and long-lasting durability, making it an essential tool for metalworking applications.

Advanced Hydraulic Power and Versatility

Harnessing an adjustable force of up to 120 tons, this machine excels across a range of metal fabrication processes-from precise punching to robust shearing and angle cutting. Its multi-functional design supports various materials, including steel, aluminum, and copper, making it indispensable for industrial manufacturing environments.

Safety and Efficiency Enhanced

Safety is paramount, with features such as an emergency stop, finger guard, and overload protection integrated into the system. Operators benefit from a quick-release die change, a centralized automated lubrication system, and advanced digital PLC controls that ensure efficient and secure operation during every cycle.

Built to Last with Heavy-duty Construction

Crafted for durability, the machine's heavy-duty steel frame, air-cooled cooling system, and industrial-grade induction motor promise years of reliable service. Noise levels are kept below 75 dB, and precision up to 0.2 mm ensures quality output for every stroke, with customizable cutting areas available on request.

FAQ's of PUNCHING SHEARING MACHINE:

Q: How does the quick-release tool change system improve the machine's efficiency?

A: The quick-release interchangeable die system allows operators to swiftly switch between different punches and dies, significantly reducing downtime during tool changes and enhancing overall productivity.

Q: What materials and thicknesses can this punching shearing machine process?

A: This machine is engineered to handle steel, mild steel, and alloy steel, as well as softer metals like aluminum and copper, cutting materials up to 25 mm thick with high mechanical precision.

Q: When should the hydraulic oil be checked or replaced?

A: It's recommended to check the hydraulic oil level regularly-ideally before each use-and replace the oil as specified in the instruction manual, usually after a set number of operational hours or annually for optimal performance.

Q: Where is this machine best suited for use?

A: This machine is designed for industrial metal fabrication workshops and manufacturing facilities across India, offering efficient operation in environments requiring heavy-duty cutting, punching, and shearing.

Q: What safety features are included to protect the operator?

A: Key safety features include an emergency stop button, finger guards to prevent accidental contact, and overload protection to safeguard users and equipment during intensive operations.

Q: How do users benefit from the advanced integrated control and PLC compatibility?

A: The advanced digital control system and PLC compatibility enable precise, programmable operations, facilitating automation, repeatability, and easier troubleshooting, translating to higher efficiency and lower operational risk.

Q: What is the process to customize the cutting area for specific tasks?

A: For customized cutting area requirements, users can specify their needs to the manufacturer or supplier when ordering. The machine can then be tailored with custom dies or modifications to accommodate unique project specifications.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Cutting Machine' category

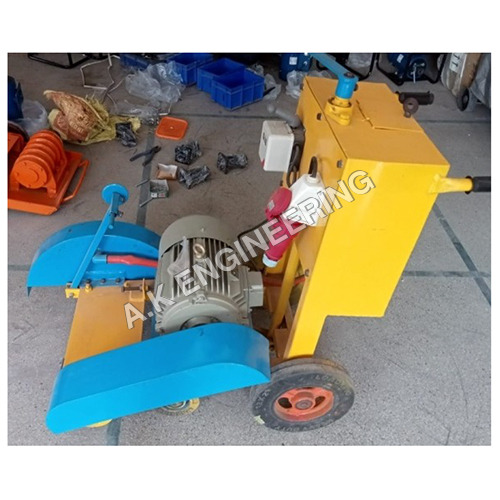

Groove Cutter Price : 35000 INR/Pack Minimum Order Quantity : 1 General Use : Construction Sites Automatic : No Product Type : Groove Cutter Drive Type : Manual, Other Material : Other, Steel Body Voltage : 220V AC Feature : Other, Portable Design Color : Other, Yellow Blue Computerized : No Cutting Material : Concrete Asphalt Cutting Thickness : Up to 5 inches Control System : Manual Weight (kg) : 150 kg Cutting Method : Manual Push Cutting Function : Other, Groove Cutting Drive Motor : Electric Motor Warranty : 1 Year Capacity : High Cooling System : Other, None Software Detail : None Motor : 3 HP Electric Motor Mechanical Precision : Moderate Type : Other, Manual Cutter Cutting Speed : Variable

Send Inquiry

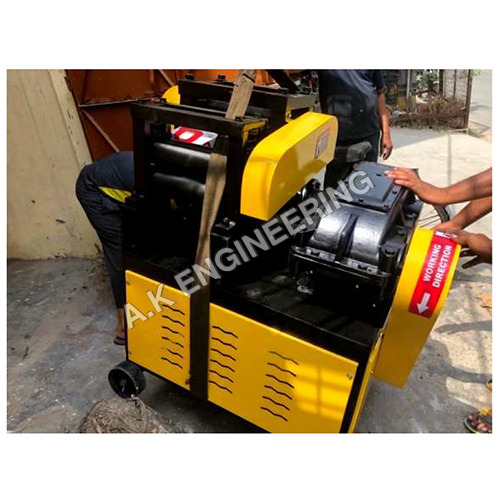

Tmt Bar Straightening Machine Price : 145000.00 INR/Pack Minimum Order Quantity : 1 General Use : Construction and steel bar cutting Automatic : Yes Product Type : Cutting Machine Drive Type : Other Material : Other Voltage : 220240V Volt (v) Feature : Other Color : Other Computerized : No Cutting Material : TMT Bars Control System : Manual Weight (kg) : Approx. 150 kg Kilograms (kg) Cutting Method : Shearing Cutting Function : Other Drive Motor : Electric motor Warranty : 1 year Cooling System : Other Software Detail : None Motor : Electricpowered motor Mechanical Precision : High

Send Inquiry

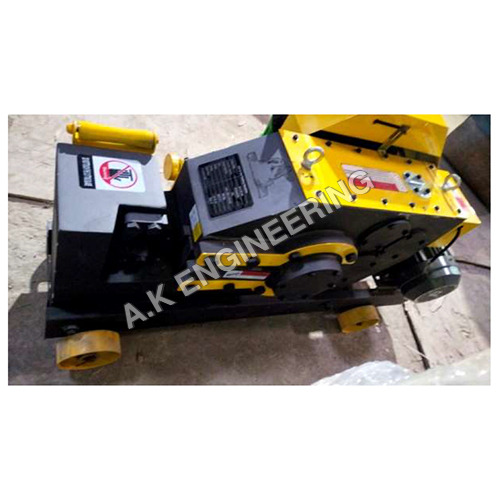

TMT Bar Cutting Maching Cutting Up to 32mm Price : 65000 INR/Pack Minimum Order Quantity : 1 General Use : TMT Bar Cutting Automatic : No Product Type : Cutting Machine Feature : Other, Portable design manual operation Color : Yellow and Black, Other Computerized : No Cutting Material : TMT Bars Cutting Thickness : Up to 32mm Control System : Manual Cutting Method : Mechanical Cutting Function : Other, TMT Bar Cutting Capacity : Cutting Up to 32mm Type : Manual Cutting Machine, Other

Send Inquiry

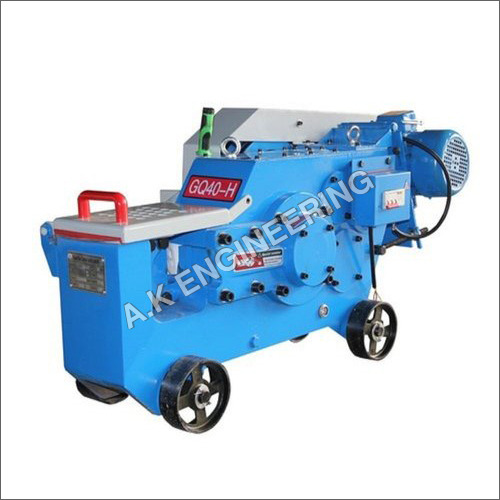

Tmt Bar Cutting Machine Price : 70000 INR/Piece Minimum Order Quantity : 1 General Use : Industrial Automatic : Yes Product Type : Bar Cutting Machine Drive Type : Mechanical, Other Material : Other Voltage : 240 Volt (v) Color : Blue Cutting Thickness : Upto 32 Millimeter (mm) Weight (kg) : 390 Kilograms (kg) Cutting Speed : 2880 RPM
